Project flow¶
LaminDB allows tracking data lineage on the entire project level.
Here, we walk through exemplified app uploads, pipelines & notebooks following Schmidt et al., 2022.
A CRISPR screen reading out a phenotypic endpoint on T cells is paired with scRNA-seq to generate insights into IFN-γ production.
These insights get linked back to the original data through the steps taken in the project to provide context for interpretation & future decision making.
More specifically: Why should I care about data flow?
Data flow tracks data sources & transformations to trace biological insights, verify experimental outcomes, meet regulatory standards, increase the robustness of research and optimize the feedback loop of team-wide learning iterations.
While tracking data flow is easier when it’s governed by deterministic pipelines, it becomes hard when it’s governed by interactive human-driven analyses.
LaminDB interfaces workflow mangers for the former and embraces the latter.
Setup¶
Init a test instance:
Install the lamindb
Python package:
pip install 'lamindb[jupyter,bionty,aws]'
!lamin init --storage ./mydata
Show code cell output
💡 connected lamindb: testuser1/mydata
Import lamindb:
import lamindb as ln
from IPython.display import Image, display
💡 connected lamindb: testuser1/mydata
Steps¶
In the following, we walk through exemplified steps covering different types of transforms (Transform
).
Note
The full notebooks are in this repository.
App upload of phenotypic data
¶
Register data through app upload from wetlab by testuser1
:
# This function mimics the upload of artifacts via the UI
# In reality, you simply drag and drop files into the UI
def mock_upload_crispra_result_app():
ln.setup.login("testuser1")
transform = ln.Transform(name="Upload GWS CRISPRa result", type="upload")
ln.track(transform=transform)
output_path = ln.core.datasets.schmidt22_crispra_gws_IFNG(ln.settings.storage.root)
output_file = ln.Artifact(
output_path, description="Raw data of schmidt22 crispra GWS"
)
output_file.save()
mock_upload_crispra_result_app()
Show code cell output
💡 saved: Transform(uid='i9X8ZnOSfOVuOxpO', name='Upload GWS CRISPRa result', type='upload', created_by_id=1, updated_at='2024-07-26 12:25:36 UTC')
💡 saved: Run(uid='EiZMFrIMx5jik0uOIsHc', transform_id=1, created_by_id=1)
Hit identification in notebook
¶
Access, transform & register data in drylab by testuser2
in notebook hit-identification.
Show code cell content
# the following mimics the integrated analysis notebook
# In reality, you would execute inside the notebook
import nbproject_test
from pathlib import Path
cwd = Path.cwd()
nbproject_test.execute_notebooks(cwd / "project-flow-scripts/hit-identification.ipynb", write=True)
Executing notebooks in /home/runner/work/lamin-usecases/lamin-usecases/docs/project-flow-scripts/hit-identification.ipynb
Scheduled: ['hit-identification']
hit-identification
✓ (4.222s)
Total time: 4.223s
Inspect data flow:
artifact = ln.Artifact.filter(description="hits from schmidt22 crispra GWS").one()
artifact.view_lineage()
Sequencer upload
¶
Upload files from sequencer via script chromium_10x_upload.py:
!python project-flow-scripts/chromium_10x_upload.py
Show code cell output
💡 connected lamindb: testuser1/mydata
💡 saved: Transform(uid='qCJPkOuZAi9q5zKv', version='1', name='chromium_10x_upload.py', key='chromium_10x_upload.py', type='script', created_by_id=1, updated_at='2024-07-26 12:25:43 UTC')
💡 saved: Run(uid='AmX1b7gOKvFSpMjUGaQN', transform_id=3, created_by_id=1)
scRNA-seq bioinformatics pipeline
¶
Process uploaded files using a script or workflow manager: Pipelines – workflow managers and obtain 3 output files in a directory filtered_feature_bc_matrix/
:
!python project-flow-scripts/cellranger.py
Show code cell output
💡 connected lamindb: testuser1/mydata
💡 saved: Transform(uid='0dHDfo6Om6LzHA16', version='7.2.0', name='Cell Ranger', type='pipeline', reference='https://www.10xgenomics.com/support/software/cell-ranger/7.2', created_by_id=2, updated_at='2024-07-26 12:25:46 UTC')
💡 saved: Run(uid='ztY15D6etNuV6ZaDZmkR', transform_id=4, created_by_id=2)
❗ this creates one artifact per file in the directory - you might simply call ln.Artifact(dir) to get one artifact for the entire directory
!python project-flow-scripts/postprocess_cellranger.py
Show code cell output
💡 connected lamindb: testuser1/mydata
💡 saved: Transform(uid='YqmbO6oMXjRj65cN', version='2', name='postprocess_cellranger.py', key='postprocess_cellranger.py', type='script', created_by_id=2, updated_at='2024-07-26 12:25:48 UTC')
💡 saved: Run(uid='kyIWqxpucwWpprhRvGhn', transform_id=5, created_by_id=2)
Inspect data flow:
output_file = ln.Artifact.filter(description="perturbseq counts").one()
output_file.view_lineage()
Integrate scRNA-seq & phenotypic data
¶
Integrate data in notebook integrated-analysis.
Show code cell content
# the following mimics the integrated analysis notebook
# In reality, you would execute inside the notebook
nbproject_test.execute_notebooks(cwd / "project-flow-scripts/integrated-analysis.ipynb", write=True)
Executing notebooks in /home/runner/work/lamin-usecases/lamin-usecases/docs/project-flow-scripts/integrated-analysis.ipynb
Scheduled: ['integrated-analysis']
integrated-analysis
✓ (4.569s)
Total time: 4.571s
Review results¶

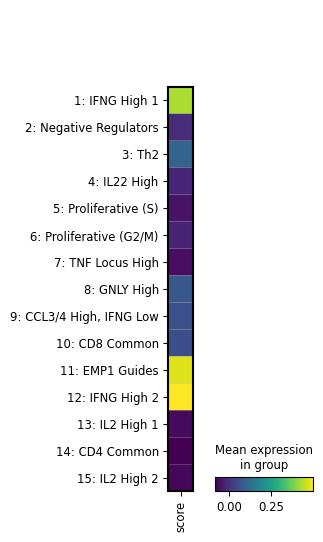

Let’s load one of the plots:
# track the current notebook as transform
ln.settings.transform.stem_uid = "1LCd8kco9lZU"
ln.settings.transform.version = "0"
ln.track()
💡 notebook imports: ipython==8.26.0 lamindb==0.74.3 nbproject_test==0.5.1
💡 saved: Transform(uid='1LCd8kco9lZU6K79', version='0', name='Project flow', key='project-flow', type='notebook', created_by_id=1, updated_at='2024-07-26 12:25:54 UTC')
💡 saved: Run(uid='7WPrTJyW5Mw76zWPj1nu', transform_id=7, created_by_id=1)
Run(uid='7WPrTJyW5Mw76zWPj1nu', started_at='2024-07-26 12:25:54 UTC', is_consecutive=True, transform_id=7, created_by_id=1)
artifact = ln.Artifact.filter(key__contains="figures/matrixplot").one()
artifact.cache()
Show code cell output
PosixUPath('/home/runner/work/lamin-usecases/lamin-usecases/docs/mydata/.lamindb/fU9AAfvvjWuUuZ7KD2Lj.png')
display(Image(filename=artifact.path))
![_images/83985e58ece17c23a2d9531fbb5bff9f7e3bf338750923fdd0575107cd141f27.png](_images/83985e58ece17c23a2d9531fbb5bff9f7e3bf338750923fdd0575107cd141f27.png)
We see that the image artifact is tracked as an input of the current notebook. The input is highlighted, the notebook follows at the bottom:
artifact.view_lineage()
Alternatively, we can also look at the sequence of transforms:
transform = ln.Transform.search("Project flow").first()
transform.parents.df()
uid | version | name | key | description | type | reference | reference_type | latest_report_id | source_code_id | created_by_id | updated_at | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
id | ||||||||||||
6 | lB3IyPLQSmvt5zKv | 1 | Perform single cell analysis, integrate with C... | integrated-analysis | None | notebook | None | None | None | None | 2 | 2024-07-26 12:25:53.024018+00:00 |
transform.view_parents()
Understand runs¶
We tracked pipeline and notebook runs through run_context
, which stores a Transform
and a Run
record as a global context.
Artifact
objects are the inputs and outputs of runs.
What if I don’t want a global context?
Sometimes, we don’t want to create a global run context but manually pass a run when creating an artifact:
run = ln.Run(transform=transform)
ln.Artifact(filepath, run=run)
When does an artifact appear as a run input?
When accessing an artifact via cache()
, load()
or open()
, two things happen:
The current run gets added to
artifact.input_of
The transform of that artifact gets added as a parent of the current transform
You can then switch off auto-tracking of run inputs if you set ln.settings.track_run_inputs = False
: Can I disable tracking run inputs?
You can also track run inputs on a case by case basis via is_run_input=True
, e.g., here:
artifact.load(is_run_input=True)
Query by provenance¶
We can query or search for the notebook that created the artifact:
transform = ln.Transform.search("GWS CRIPSRa analysis").first()
And then find all the artifacts created by that notebook:
ln.Artifact.filter(transform=transform).df()
uid | version | description | key | suffix | type | accessor | size | hash | hash_type | n_objects | n_observations | visibility | key_is_virtual | storage_id | transform_id | run_id | created_by_id | updated_at | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
id | |||||||||||||||||||
2 | muoatHZNdulaRlsCmEgx | None | hits from schmidt22 crispra GWS | None | .parquet | dataset | DataFrame | 18368 | ky0pLx8o9oFJnn0niPUHog | md5 | None | None | 1 | True | 1 | 2 | 2 | 2 | 2024-07-26 12:25:41.170356+00:00 |
Which transform ingested a given artifact?
artifact = ln.Artifact.filter().first()
artifact.transform
Transform(uid='i9X8ZnOSfOVuOxpO', name='Upload GWS CRISPRa result', type='upload', created_by_id=1, updated_at='2024-07-26 12:25:36 UTC')
And which user?
artifact.created_by
User(uid='DzTjkKse', handle='testuser1', name='Test User1', updated_at='2024-07-26 12:25:43 UTC')
Which transforms were created by a given user?
users = ln.User.lookup()
ln.Transform.filter(created_by=users.testuser1).df()
uid | version | name | key | description | type | reference | reference_type | latest_report_id | source_code_id | created_by_id | updated_at | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
id | ||||||||||||
1 | i9X8ZnOSfOVuOxpO | None | Upload GWS CRISPRa result | None | None | upload | None | None | None | NaN | 1 | 2024-07-26 12:25:36.303766+00:00 |
3 | qCJPkOuZAi9q5zKv | 1 | chromium_10x_upload.py | chromium_10x_upload.py | None | script | None | None | None | 5.0 | 1 | 2024-07-26 12:25:43.849450+00:00 |
7 | 1LCd8kco9lZU6K79 | 0 | Project flow | project-flow | None | notebook | None | None | None | NaN | 1 | 2024-07-26 12:25:54.925063+00:00 |
Which notebooks were created by a given user?
ln.Transform.filter(created_by=users.testuser1, type="notebook").df()
uid | version | name | key | description | type | reference | reference_type | latest_report_id | source_code_id | created_by_id | updated_at | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
id | ||||||||||||
7 | 1LCd8kco9lZU6K79 | 0 | Project flow | project-flow | None | notebook | None | None | None | None | 1 | 2024-07-26 12:25:54.925063+00:00 |
We can also view all recent additions to the entire database:
ln.view()
Show code cell output
Artifact
uid | version | description | key | suffix | type | accessor | size | hash | hash_type | n_objects | n_observations | visibility | key_is_virtual | storage_id | transform_id | run_id | created_by_id | updated_at | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
id | |||||||||||||||||||
12 | fU9AAfvvjWuUuZ7KD2Lj | None | None | figures/matrixplot_fig2_score-wgs-hits-per-clu... | .png | dataset | None | 28814 | iHBk2mytxzBgFKio2iPCnQ | md5 | None | None | 1 | True | 1 | 6 | 6 | 2 | 2024-07-26 12:25:53.925855+00:00 |
11 | iqjY0dSXyx4xLCRxNAOg | None | None | figures/umap_fig1_score-wgs-hits.png | .png | dataset | None | 118999 | 7PNEiVMg70E3s88629NIXg | md5 | None | None | 1 | True | 1 | 6 | 6 | 2 | 2024-07-26 12:25:53.704315+00:00 |
10 | EsTmB3UDQieHRfWdz624 | None | perturbseq counts | schmidt22_perturbseq.h5ad | .h5ad | dataset | AnnData | 20659936 | la7EvqEUMDlug9-rpw-udA | md5 | None | None | 1 | False | 1 | 5 | 5 | 2 | 2024-07-26 12:25:49.625166+00:00 |
9 | mGcxtN4MRiWf9fJi26b1 | None | None | perturbseq/filtered_feature_bc_matrix/features... | .tsv.gz | dataset | None | 6 | ALJmvI8s2go2GE6xsWNxUg | md5 | None | None | 1 | False | 1 | 4 | 4 | 2 | 2024-07-26 12:25:46.524853+00:00 |
8 | SMrSwaq5wqSJHC8atlhx | None | None | perturbseq/filtered_feature_bc_matrix/barcodes... | .tsv.gz | dataset | None | 6 | c3YrHz02azMxWJG2q9XcrQ | md5 | None | None | 1 | False | 1 | 4 | 4 | 2 | 2024-07-26 12:25:46.524257+00:00 |
7 | F0wX8OttRqt7fUBNTpuo | None | None | perturbseq/filtered_feature_bc_matrix/matrix.m... | .mtx.gz | dataset | None | 6 | B_QFW3Tugc_yUNuCWC9lbQ | md5 | None | None | 1 | False | 1 | 4 | 4 | 2 | 2024-07-26 12:25:46.523293+00:00 |
4 | JpHWg8avZaAAROjVNn2I | None | None | fastq/perturbseq_R2_001.fastq.gz | .fastq.gz | dataset | None | 6 | MO3vs3A184Huy8LGiCHWqQ | md5 | None | None | 1 | False | 1 | 3 | 3 | 1 | 2024-07-26 12:25:43.833000+00:00 |
Run
uid | started_at | finished_at | is_consecutive | reference | reference_type | transform_id | report_id | environment_id | created_by_id | |
---|---|---|---|---|---|---|---|---|---|---|
id | ||||||||||
1 | EiZMFrIMx5jik0uOIsHc | 2024-07-26 12:25:36.307212+00:00 | NaT | True | None | None | 1 | None | NaN | 1 |
2 | fpvj4hbVgGGZGgLTPf10 | 2024-07-26 12:25:40.736788+00:00 | NaT | True | None | None | 2 | None | NaN | 2 |
3 | AmX1b7gOKvFSpMjUGaQN | 2024-07-26 12:25:43.460150+00:00 | 2024-07-26 12:25:43.847531+00:00 | True | None | None | 3 | None | 6.0 | 1 |
4 | ztY15D6etNuV6ZaDZmkR | 2024-07-26 12:25:46.134337+00:00 | NaT | None | None | None | 4 | None | NaN | 2 |
5 | kyIWqxpucwWpprhRvGhn | 2024-07-26 12:25:48.106999+00:00 | NaT | None | None | None | 5 | None | NaN | 2 |
6 | 0E5COCfwIF0SXOwLERCk | 2024-07-26 12:25:53.032064+00:00 | NaT | True | None | None | 6 | None | NaN | 2 |
7 | 7WPrTJyW5Mw76zWPj1nu | 2024-07-26 12:25:54.931004+00:00 | NaT | True | None | None | 7 | None | NaN | 1 |
Storage
uid | root | description | type | region | instance_uid | run_id | created_by_id | updated_at | |
---|---|---|---|---|---|---|---|---|---|
id | |||||||||
1 | w1yIDjpHwQ9a | /home/runner/work/lamin-usecases/lamin-usecase... | None | local | None | None | None | 1 | 2024-07-26 12:25:34.392114+00:00 |
Transform
uid | version | name | key | description | type | reference | reference_type | latest_report_id | source_code_id | created_by_id | updated_at | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
id | ||||||||||||
7 | 1LCd8kco9lZU6K79 | 0 | Project flow | project-flow | None | notebook | None | None | None | NaN | 1 | 2024-07-26 12:25:54.925063+00:00 |
6 | lB3IyPLQSmvt5zKv | 1 | Perform single cell analysis, integrate with C... | integrated-analysis | None | notebook | None | None | None | NaN | 2 | 2024-07-26 12:25:53.024018+00:00 |
5 | YqmbO6oMXjRj65cN | 2 | postprocess_cellranger.py | postprocess_cellranger.py | None | script | None | None | None | NaN | 2 | 2024-07-26 12:25:48.101824+00:00 |
4 | 0dHDfo6Om6LzHA16 | 7.2.0 | Cell Ranger | None | None | pipeline | https://www.10xgenomics.com/support/software/c... | None | None | NaN | 2 | 2024-07-26 12:25:46.131981+00:00 |
3 | qCJPkOuZAi9q5zKv | 1 | chromium_10x_upload.py | chromium_10x_upload.py | None | script | None | None | None | 5.0 | 1 | 2024-07-26 12:25:43.849450+00:00 |
2 | T0T28btuB0PG5zKv | 1 | GWS CRIPSRa analysis | hit-identification | None | notebook | None | None | None | NaN | 2 | 2024-07-26 12:25:40.731960+00:00 |
1 | i9X8ZnOSfOVuOxpO | None | Upload GWS CRISPRa result | None | None | upload | None | None | None | NaN | 1 | 2024-07-26 12:25:36.303766+00:00 |
User
uid | handle | name | updated_at | |
---|---|---|---|---|
id | ||||
2 | bKeW4T6E | testuser2 | Test User2 | 2024-07-26 12:25:46.124885+00:00 |
1 | DzTjkKse | testuser1 | Test User1 | 2024-07-26 12:25:43.346224+00:00 |
